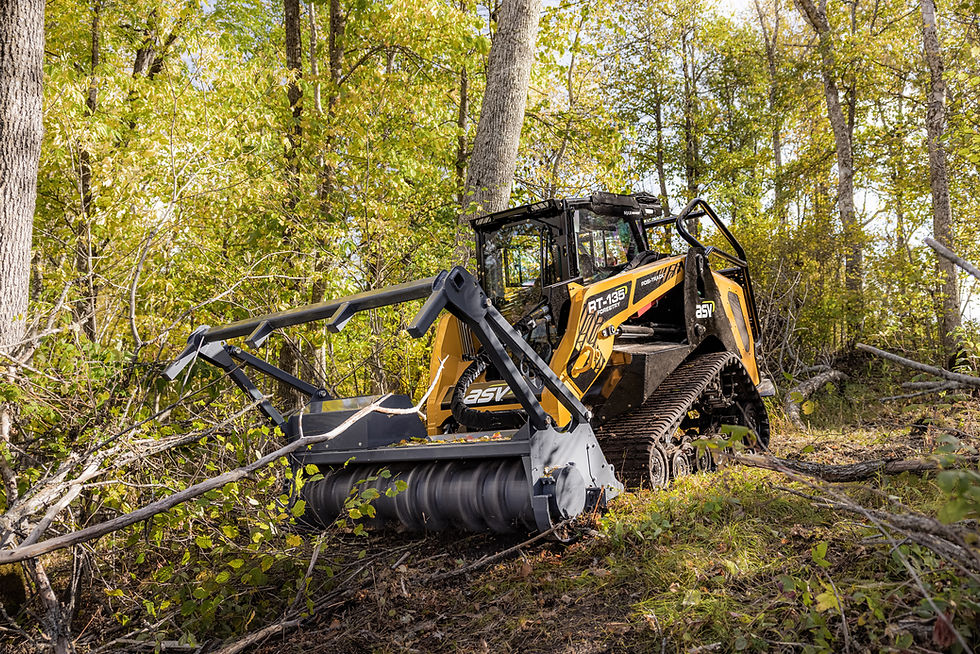

RT-135 Forestry

Loader Arms

Radial

Operating Weight

12990 lbs

Rated Operating Capacity @ 35%

4150 lbs

Rated Operating Capacity @ 50%

5929 lbs

Ground Pressure

4.6 psi

Engine Power

132 hp

Tipping Load

11858 lbs

Travel Speed, Maximum - 1st Speed

6 mph

Travel Speed, Maximum - 2nd Speed

10 mph

Type

Diesel 4-cylinder, turbo charged

Model

Cummins QSF3.8

Cooling System

Temperature-controlled, variable speed and operator time-selectable, hydraulically-driven, auto-reversing fan and coolant/anti-freeze-filled radiator

Intake Air Cleaner

Three-stage

Emission Controls

Meets all U.S. EPA Tier 4 final standards

Standard Feature

Auto Idle

Engine Power

132 hp

Gross Power Rating

132 hp

Torque Peak

360 ft-lb

Track Type

General purpose track constructed of rubber compound with embedded co-polymer cords and all-purpose treads.

Drive System

Two hydrostatic direct drive sprockets controlled by a single joystick

Track Drive Sprocket

Elevated with low friction, replaceable sprocket rollers

Undercarriage suspension

Two independent torsion axles per undercarriage

Roller Wheels

24 high-density polyurethane and rubber wheels per track. Wheels include sealed bearings

Track Width

20 in

Length of Track on the Ground

71 in

Ground Contact Area

2840 in2

Roller Wheel Diameter Front & rear wheels

15 in

Roller Wheel Diameter Middle Wheel

10 in
