The RT-65 is a premium, mid-size loader designed to deliver maximum serviceability, reliability and productivity. With ASV’s patented Posi-Track® undercarriage, this machine is built for digging and ground engagement work in construction, excavation, landscaping and snow-clearing applications.

Operating Weight: 7480 lbs

Rated Operating Capacity: 1925 lbs

Engine Power: 67 hp

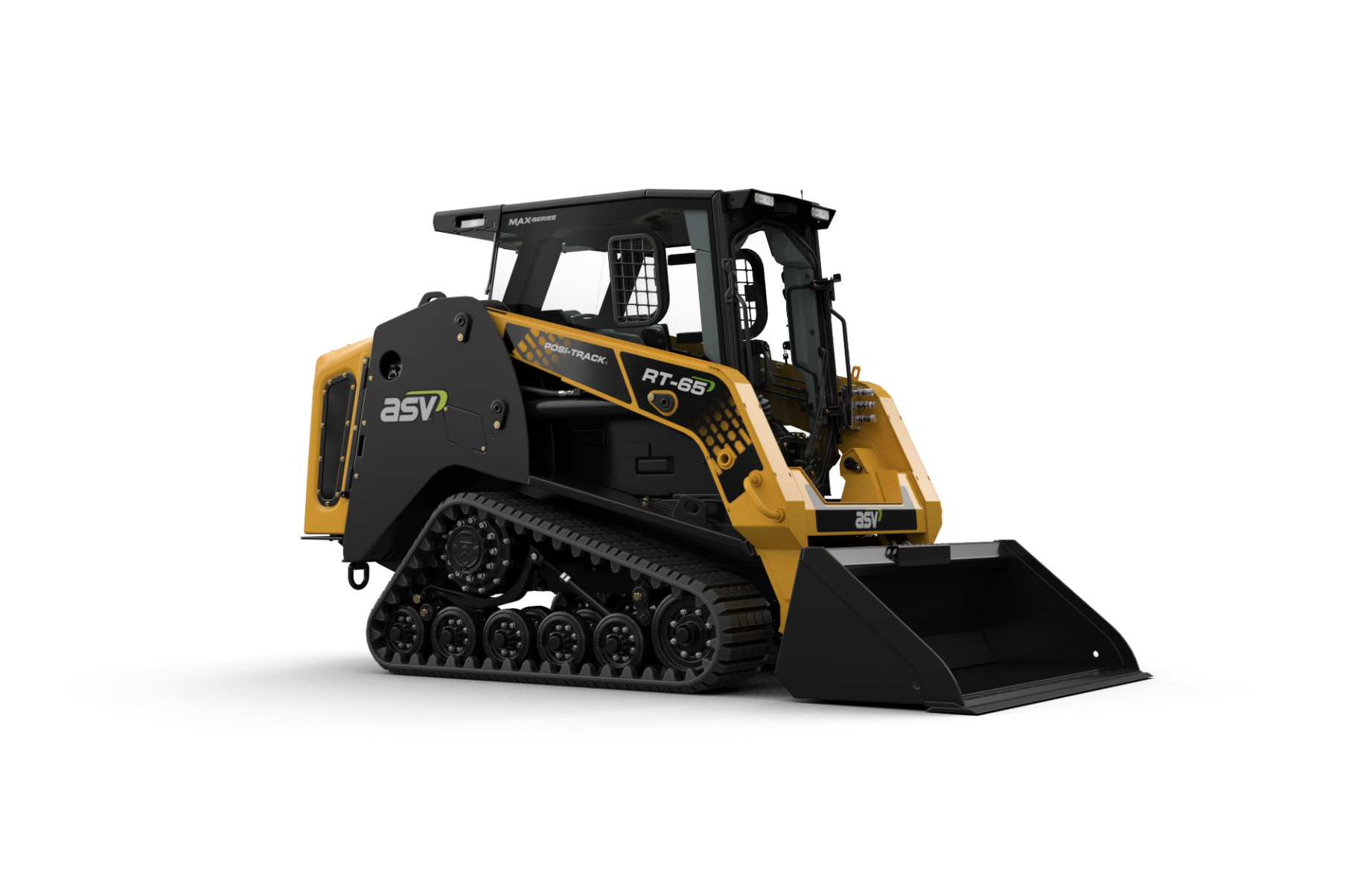

RT-65-1C

Loader Arms	Radial
Operating Weight	7,405 lbs
Rated Operating Capacity @ 35%	2,000 lbs
Rated Operating Capacity @ 50%	2,857 lbs
Ground Pressure	4.2 psi
Engine Power	67.1 hp
Tipping Load	5,714 lbs
Max. Travel Speed	9.1 mph
Height to Bucket Pin	120 in.
Dump Height at Bucket Discharge	87.5 in.
Rear Angle of Departure	36 Degrees
Bucket Roll Back at Ground Level	20 Degrees
Ground Clearance	12 in.
Overall Length with Bucket	142 in.

Features	Diesel, 4-cylinder, intercooled, turbocharged
Emissions Controls	Meets all U.S. EPA Tier 4 Final standards

Track Width	15 in.
Length of Track on the Ground	59 in.
Ground Contact Area	1770 in2
Roller Wheels	12 high-density polyurethane and rubber wheels per track. Wheels include sealed bearings.
Front Roller Wheels	14 in.
Rear and Middle Roller Wheels	10 in.

Used & New Equipment Available Today

Multi-Purpose Bucket (New)

Ryans Tree Grapple (New)

Fecon Mulcher (New)

Zaugg Monoblock 230 (Demo)

Used, Demo, and New Equipment Available Today

RT-65-1C

Operations

Engine

Drive Train

Engine Power	67.1 hp
Gross Horsepower	67.1 hp
Torque Peak	193.8 ft-lb
