THE ASV RT-135 SKID STEER

Toughness Redefined
at Hardline Equipment

Welcome to Hardline Equipment, your trusted source for reliable equipment in the construction and landscaping industry. We are proud to offer the ASV RT135, the best skid steer for any heavy-duty project. In this article, we will provide comprehensive information about the ASV RT135, its features, benefits, specifications, and why it is the best option for anyone looking for a skid steer or compact track loader.

Quick Specs

The ASV RT-135 Skid Steer is a compact track loader with the following specifications:

Size: 11.5 feet long, 6.5 feet wide, 7.7 feet tall

Weight: 11,665 pounds

Engine: Turbocharged diesel engine with 135 horsepower and 481 lb.-ft. of torque

Operating Capacity: 3,425 pounds

ASV RT135: The Best Skid Steer for Construction and Landscaping

The ASV RT135 is a versatile, compact track loader that combines power, performance, and precision for tough jobs. With its high operating capacity, low ground pressure, and excellent stability, the ASV RT135 is the perfect equipment for construction contractors, landscapers, and property managers who need heavy-duty equipment for their projects.

Benefits of the ASV RT135

The ASV RT135 offers several benefits to the target audience. Its compact design allows it to maneuver easily in tight spaces, making it perfect for indoor and outdoor projects. The low ground pressure and rubber tracks also minimize damage to the terrain, ensuring that the project site remains in good condition. The ASV RT135's high operating capacity enables it to handle heavy loads with ease, making it the ideal equipment for any project that requires heavy lifting.

Applications of the
ASV RT135

The ASV RT-135 Skid Steer is a versatile piece of equipment that can be used in a variety of applications and industries, including:

Construction: grading, excavation, material handling, and demolition
Landscaping: mowing, mulching, and tree care
Forestry: logging, land clearing, and brush cutting
Snow Removal: plowing, blowing, and hauling

Features that Make the ASV RT135 Stand Out

The ASV RT135 is a standout skid steer and compact track loader, packed with features that enhance its performance, versatility, and operator comfort. Here are the key features that make the ASV RT135 a superior choice:

Powerful Cummins Diesel Engine

The ASV RT135 is equipped with a Cummins diesel engine that not only delivers excellent performance but also ensures fuel efficiency. This powerful engine allows the machine to handle heavy-duty tasks with ease, making it a reliable choice for demanding projects.

Spacious Cab with Excellent Visibility

The ASV RT135 boasts a spacious cab designed with operator comfort in mind. The wide windows provide excellent visibility, allowing operators to have a clear view of their surroundings, which is crucial for safety and efficient operation.

Optional High-Flow Hydraulics

With the option of high-flow hydraulics, the ASV RT135 can handle a wide range of attachments, from buckets to augers. This feature allows it to perform a variety of tasks with ease, making it a versatile machine for different job requirements.

Unique Suspension System

The ASV RT135 features a unique suspension system that provides exceptional traction and stability, making it capable of navigating various terrains. Additionally, this system enhances operator comfort by reducing vibrations and shocks, leading to less fatigue during long hours of operation.

High Ground Clearance

The ASV RT135 offers high ground clearance, enabling it to easily navigate over rough terrain and obstacles. This feature makes it a versatile machine capable of working in challenging conditions, such as construction sites or uneven landscapes.

Posi-Track Technology

This patented technology provides superior traction and flotation in all types of terrain. Whether it's muddy fields or sandy dunes, the ASV RT135 can handle even the toughest jobs with ease, thanks to this innovative feature.

Load-Sensing Hydraulic System

This advanced system ensures maximum power and productivity while minimizing fuel consumption. By automatically adjusting to the load, it optimizes the machine's performance, making the ASV RT135 an economical choice for various tasks.

All-Terrain Tires

These specially designed tires provide excellent traction and stability in any condition, whether it's muddy, sandy, or rocky terrain. This enhances the machine's versatility and ensures reliable performance in various work environments.

High-Performance Engine

The turbocharged diesel engine of the ASV RT135 delivers up to 135 horsepower and 481 lb.-ft. of torque. This makes it one of the most powerful compact track loaders available, capable of handling heavy loads and demanding tasks efficiently.

Specifications for The ASV RT135:
A Compact Yet Powerful Machine

It measures in at 11 feet in length, 6 feet in width, and 6.5 feet in height. It has an operating weight of 9,140 pounds and can handle a maximum operating capacity of 1,350 pounds. This machine is driven by a robust Cummins diesel engine, delivering 74 horsepower and a torque of 221 lb-ft. It can reach a top ground speed of 10.5 mph and has a hydraulic flow rate of 22.9 gallons per minute.

In addition to these specifications, the ASV RT135 boasts a gross power output of 135 horsepower and can handle tasks up to a maximum capacity of 3,800 lbs. It has a ground clearance of 13.9 inches and an overall width of 79 inches. The machine's hydraulic system is both durable and efficient, capable of managing a wide range of attachments and performing various tasks.

Loader Arms: Radial
Operating Weight: 12,075 lbs
Rated Operating Capacity @ 35%: 3,500 lbs
Rated Operating Capacity @ 50%: 5,000 lbs
Ground Pressure: 4.7 psi
Engine Power: 132 hp
Tipping Load: 10,000 lbs
Max. Travel Speed: 10 mph
Height to Bucket Pin: 125 in
Dump Height at Bucket Discharge: 91 in
Rear Angle of Departure: 34 Degrees
Bucket Roll Back at Ground Level: 45 Degrees
Ground Clearance: 15 in
Overall Length with Bucket: 157 in
Reach at Dump Height: 24 in

Track Type: General purpose track constructed of rubber compound with embedded co-polymer cords and all-purpose treads
Drive System: Two hydrostatic direct drive sprockets controlled by a single joystick
Track Drive Sprocket: Elevated with low friction, replaceable sprocket rollers
Undercarriage Suspension: Two independent torsion axles per undercarriage
Roller Wheels: 24 high-density polyurethane and rubber wheels per track. Wheels include sealed bearings
Track Width: 18 in
Length of Track on the Ground: 71 in
Ground Contact Area: 2,556 in²
Roller Wheel Diameter Front & Rear Wheels: 15 in
Roller Wheel Diameter Middle Wheel: 10 in

Controls: Intermittent via joystick button or continuous via console switch. High-flow is adjustable, and loader/auxiliary sharing is adjustable via machine display
Couplers: Push-to-connect quick couplers mounted on loader arms. The pressure relief valve on coupler block
Cooling System: High-efficiency side-by-side radiator and oil cooler
Pump Capacity Low: 20 gpm
Pump Capacity High: 50 gpm
System Pressure Max Low: 3,300 psi
System Pressure Max High: 4,060 psi

Seat: Adjustable contour vinyl mechanical seat with built-in operator presence switch, lap bar, and 2 in. (51 mm) wide seat belt, operator manual pouch
Loader Controls: Right-hand electronic joystick controls loader lift, lower and tilt, plus intermittent control of auxiliary hydraulic. Loader speed is adjustable and selectable from ISO or H control pattern
Drive Control: Left-hand electronic joystick controls machine speed and direction. Track speed is adjustable, includes a Creep Mode and is selectable from ISO or H control pattern
Engine Speed: Hand-operated foot throttle and foot throttle
Machine Display: 7-INCH COLOR MACHINE DISPLAY: Engine RPM, engine oil pressure, hydraulic oil high temperature, engine coolant temperature, battery voltage, hour meter, fuel level, trip meter, engine diagnostics, system monitoring, fault logging, integrated rearview camera, password protection with user profiles, job clock, maintenance schedules, Def level, Adjustable controls, Adjustable hydraulic flows, winch (optional) control
ROPS: ISO 3471 Level 1 (Level 2 optional)
FOPS: ISO 3449 Level 1 (Level 2 optional)
Illumination: 2 - Adjustable forward-facing LED lights, 2 - Adjustable rear-facing LED lights, 1 - Interior light, 2 - LED side lights
Convenience: 12V power port
Standard Features: Horn, backup alarm, cup holder, phone holder, behind seat storage, rearview mirror, lap bar, roof escape hatch, roof panel & rear cab windows. Adjustable joystick & armrest positions, adjustable directional & airflow HVAC vents, radio with Bluetooth & USB, frameless front door, attachment control kit, wiper/washer, easy-off door

Type: Diesel, 4-cylinder, turbocharged
Model: Cummins QSF3.8
Cooling System: Temperature-controlled, variable-speed hydraulically-driven fan and coolant/anti-freeze-filled radiator
Intake Air Cleaner: Three-stage
Emission Controls: Meets all U.S. EPA Tier 4 final standards
Standard Feature: Auto Idle
Engine Power: 132 hp
Displacement: 232 in³
Gross Horsepower: 132 hp
Torque Peak: 360 ft-lb

Please note that the specifications mentioned above are subject to the manufacturer's data and may vary slightly based on model variations.

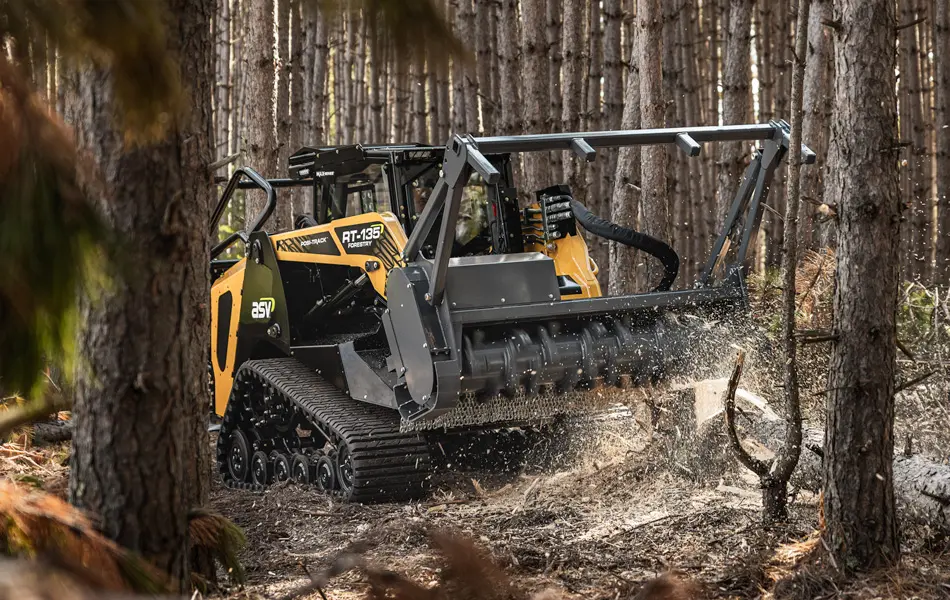

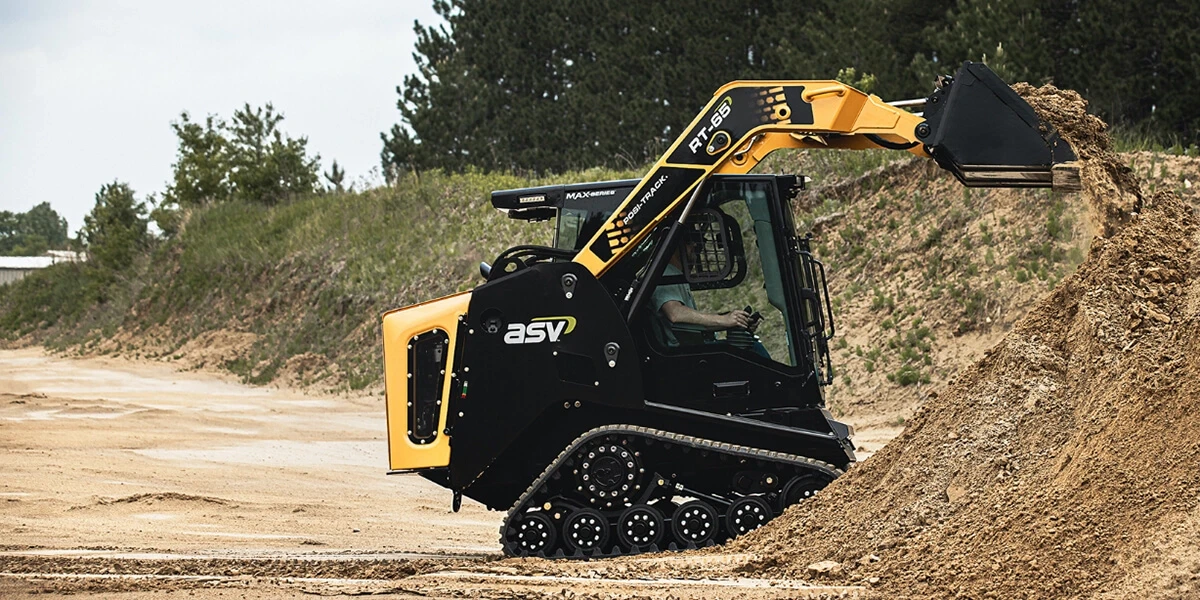

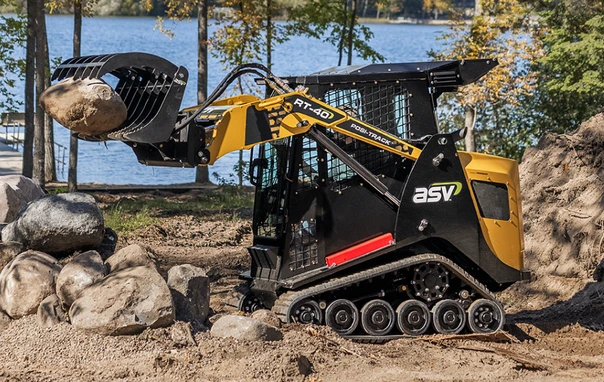

ASV RT135 Gallery: A Visual Journey Through Performance and Versatility
