The ASV RT-40

A Compact Powerhouse

The ASV RT-40 is more than just a machine; it's a revolution in compact track loaders. This compact titan, equipped with a turbocharged YANMAR diesel engine, is effortlessly controlled with a single joystick and its unique steering capabilities make it the perfect solution for tackling big jobs in small spaces. Experience this power and versatility at Hardline Equipment, your trusted partner in the construction and landscaping industry. With our years of experience, wide range of financing options, and knowledgeable staff, we ensure you select the right equipment for your needs and provide exceptional customer service to maximize your ASV RT-40 benefits.


Quick Specs

The ASV RT-40 is a compact track loader with the following specifications:

Size: Compact size for maximum maneuverability in tight spaces.

Weight: 4005 lbs (1817 kg) for optimal stability during operation.

Engine: Turbocharged YANMAR diesel engine.

Clearing Capacity: Exceptional pushing and digging power.

Ground Pressure: 3.3 psi for minimal ground disturbance.

Why Hardline Equipment is the Ultimate Choice for the ASV RT-40

Experience the power and versatility of the ASV RT-40 at Hardline Equipment, your trusted partner in the construction and landscaping industry. This compact track loader, equipped with a turbocharged YANMAR diesel engine, offers a unique combination of power and compact size. With our years of experience, wide range of financing options, and knowledgeable staff, we ensure you select the right equipment for your needs and provide exceptional customer service to maximize your ASV RT-40 benefits.

Benefits of the ASV RT-40

The ASV RT-40 offers several benefits to its users. Its compact design allows it to maneuver easily in tight spaces, making it perfect for construction in both urban and rural areas. The high clearing capacity enables it to handle heavy loads with ease, making it the ideal equipment for any project that requires large-scale construction or landscaping. The RT-40's diesel engine ensures efficient and environmentally friendly operation. Additionally, its multi-use preparation feature and easy maintenance design add to its overall user convenience and versatility.

Applications of the ASV RT-40

The ASV RT-40 is ideal for a wide range of applications in the construction and landscaping industry. It can be used for large-scale construction in urban and rural areas, airport runways, and other large spaces. With its high clearing capacity and excellent maneuverability, the RT-40 can handle any construction or landscaping task with ease.

The ASV RT-40 is a versatile piece of equipment that can be used in a variety of applications and industries, including:

Construction:

Large-scale construction in urban and rural areas, airport runways, and other large spaces.

Landscaping:

Preparation for landscaping tasks during the summer season when equipped with a boom mower.

Mulit-Use Prep:

Can be equipped with a boom mower, making it ideal for use during the summer season.

Maintenance:

Easy access to the engine compartment for convenient maintenance tasks.

Features that Set the ASV RT-40 Apart

Unparalleled Power

The RT-40 boasts a power output that is unmatched in its class, making it an ideal choice for large-scale construction and landscaping tasks in various settings, from city streets to airport runways

Exceptional Maneuverability

Thanks to its front, rear, all-wheel, and crab steering, the RT-40 offers exceptional maneuverability, allowing it to handle tasks in tight spaces with ease.

Multi-Use Preparation

The RT-40 can be prepared for multiple uses. For example, it can be equipped with a boom mower, making it ideal for use during the summer season.

Versatile Clearing Widths

With clearing widths ranging from 180 to 210 cm, the RT-40 offers the flexibility needed to efficiently handle tasks in a variety of situations.

User-Friendly Operation

The RT-40 is designed with user convenience in mind. Its built-in joystick and display make it easy to control the machine and adjust its settings as needed

Easy Maintenance

The RT-40 features a large rear-tilting hood, allowing easy access to all maintenance points, including filters, oil and fuel tanks, reservoirs, hydraulic and water separator drains, and the battery.

High-Performance Engine

The RT-40 is powered by a turbocharged YANMAR diesel engine, ensuring efficient operation while minimizing environmental impact.

Flexible Ejector Tube Options

The RT-40 offers various ejector tube lengths, providing flexible and efficient snow ejection options.

Superior Durability

The RT-40's robust construction, crafted from high-quality materials, ensures durability and longevity. It's built to withstand harsh conditions, making it a reliable choice for heavy-duty tasks. At Hardline Equipment, we're dedicated to providing enduring solutions.

Specifications for The ASV RT-40: A compact yet powerful machine.

The ASV RT-40 is a compact track loader with the following specifications:

Operating Weight: 4005 lbs (1817 kg)
Rated Operating Capacity @ 35%: 931 lbs (422 kg)
Ground Pressure: 3.3 psi (22.7 kPa)
Engine Power: 38.2 hp (28.5 kW)
Tipping Load: 2660 lbs (1207 kg)
Max. Travel Speed: 7.1 mph (11.4 kph)


Track Type: General purpose track constructed of rubber compound with embedded co-polymer cords and all-purpose treads. Single row of track drive lugs molded in. Turf track with smooth tread available as an option
Drive System: Two hydrostatic direct drive sprockets controlled by a single joystick
Track Drive Sprocket: Elevated with low friction, replaceable sprocket rollers
Undercarriage suspension: 2 independent torsion axles per undercarriage
Roller Wheels: 12 high-density polyurethane and rubber wheels per track. Wheels include sealed bearings
Track Width: 11 in (279 mm)
Length of Track on the Ground: 55 in (1397 mm)
Ground Contact area: 1210 in2 (0.78 m2)
Roller Wheel Diameter: 10 in (254 mm)

Seat: Adjustable contour vinyl seat with built-in operator presence switch, lap bar and 2 in. ( 51 mm ) wide seat belt
Loader Control: Right-hand pilot hydraulic joystick controls loader lift/tilt, with intermittent control of auxiliary hydraulics
Drive Control: Left-hand pilot hydraulic joystick controls machine speed and direction
Engine speed: Hand-operated rotary throttle
Parking Brake: Actuated by dash-mounted switch
Multi-Functional Color 4.3 Inch Display/Indicator: Engine RPM, Engine Coolant Temperature, Engine Oil Pressure, Hydraulic Oil Temperature, Battery Voltage, Hour Meter, Fuel Level, Trip Meter, Engine Diagnostics, System Monitoring, Fault Logging and More
ROPS: Meets ISO 3471
FOPS: Meets ISO 3449
Operator Restraint Anchorage: Meets ISO 6683, CAL OSHA 1596
Illumination: 2 - Fixed forward-facing LED lights, 1 - Adjustable rear-facing LED light, 1 - Interior light, 2 - Red LED tail lights
Convenience: 1 - 12 V power ports

Please note that the specifications mentioned above are subject to the manufacturer's data and may vary slightly based on model variations.

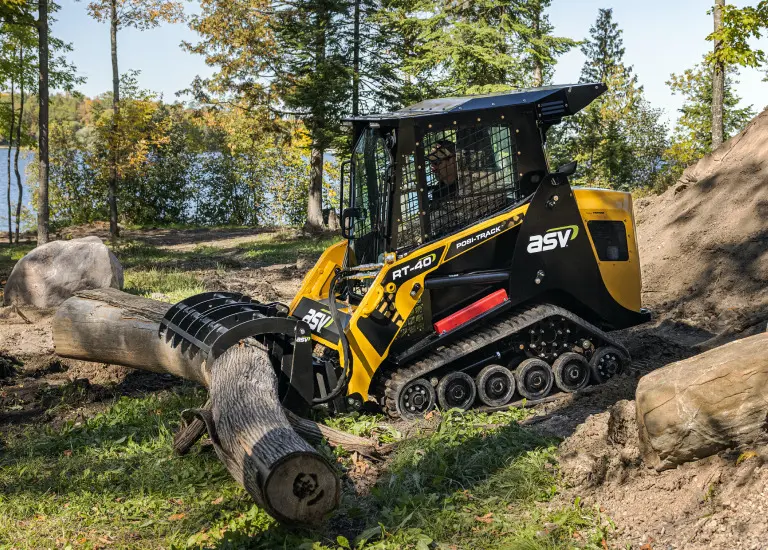

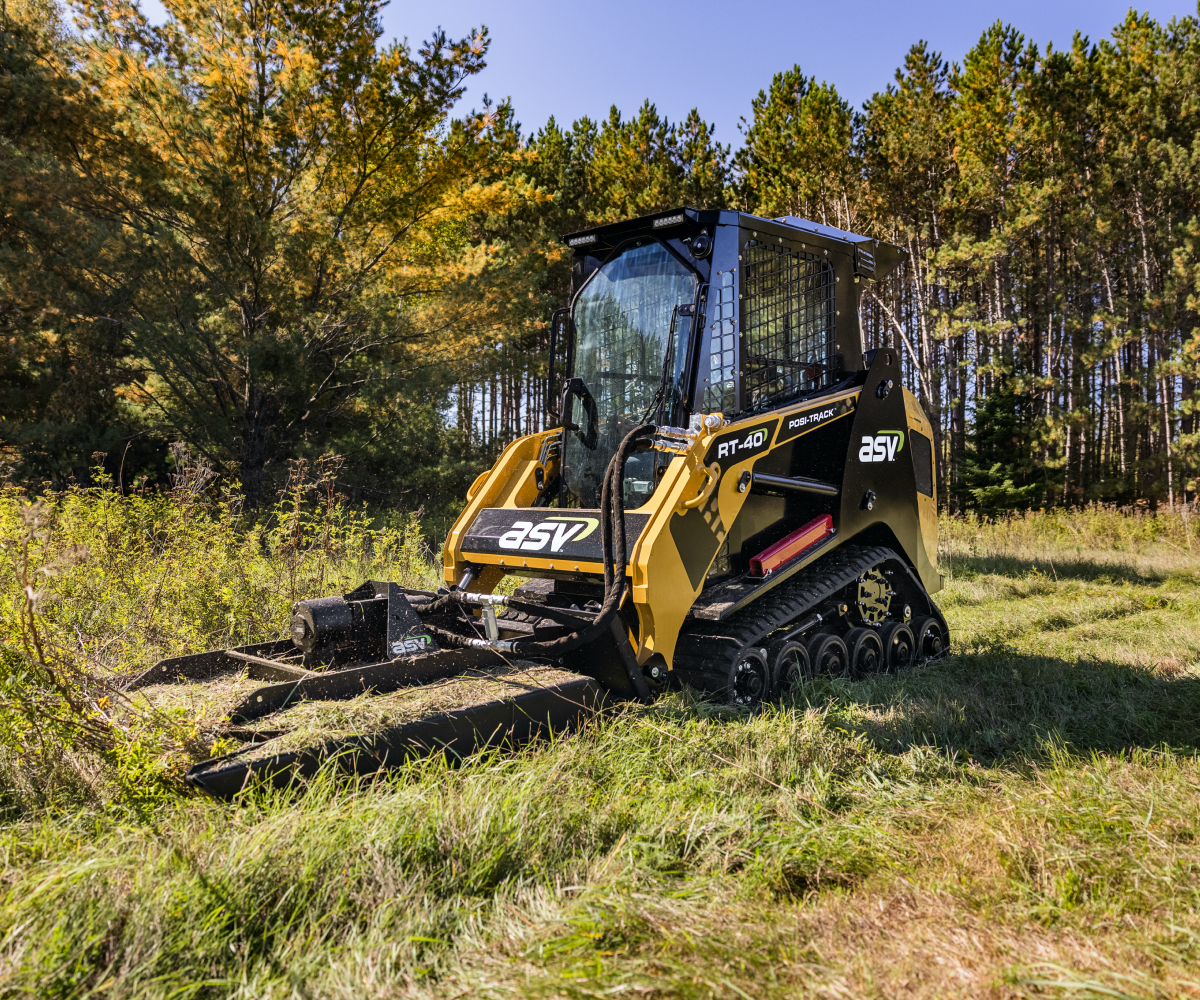

ASV RT-40 Showcase: An Illustrative Exploration of Superior Construction and Landscaping Capabilities

Customer Testimonials: Satisfied Users of ASV RT-40

ASV has many satisfied users of the RT-40. But don't just take our word for it. Here’s what some of our satisfied customers might have said:

"I had an ADV RC-30.. loved that machine.. would climb a wall, OK Lift but more is better. Finicky at best.. weak drive motors but never let me down, did amazing things with it. Upgraded to an RT-40! WOW.. much more power.. very refined.. no slamming the joystick.. Lifts and drives with a LOT.. goes way faster than the RC30. Maxed out everything, and it keeps on coming.. the Kubota engine starts right up, no DEF fluid. Frame is much stronger.. suspension similar but bigger wheel bearings and more Solid. Can't say enough positive about it! This RT40 is totally Awesome.. Goes places on the side of steep hills in mud, hauling big stuff that nobody else can do.. IMO ASV owns the Subcompact 4' bucket Track Loader business."


Why Choose Hardline Equipment?

When it comes to buying an ASV RT-40, Hardline Equipment is the best choice. We have years of experiencein the industry and are committed to providing our customers with top-quality equipment and exceptional customer service. Our expertise makes it easy to help choose the equipment you need and ensures we will be able to help you find the right machine for you. We offer flexible financing options that can be customized to your budget, and we provide excellent customer service throughout the entire buying process.

Contact Hardline Equipment for More Information About the ASV RT-40

To get in touch with us, simply click the button below, fill out the form or give us a call at our main office at (303) 288-8989. Our friendly and knowledgeable staff will be happy to answer any additional questions you may have.

If you're interested in learning more about the ASV RT-40 or would like to schedule a demo, let us know! We'll be happy to provide you with more information and help you find the right equipment for your needs.

Thank you for considering Hardline Equipment for your equipment needs. We look forward to hearing from you soon!
